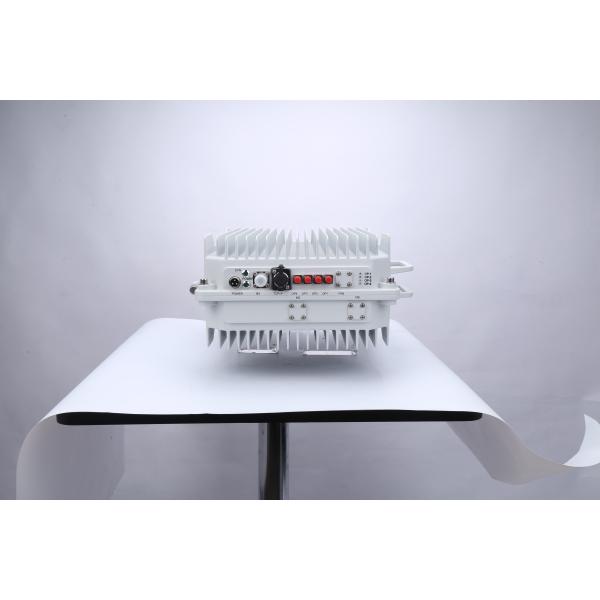

High Gain 85dB 2G 3G 4G LTE Repeater Outdoor Mobile Signal Booster 900-1800-2100MHz Amplifier

Name: High Gain 85dB 2G 3G 4G LTE Repeater Outdoor Mobile Signal Booster 90018002100MHz Amplifier
Brand: JIAYI
Price: 488.00 USD

China High Gain 85dB 2G 3G 4G LTE Repeater Outdoor Mobile Signal Booster 900-1800-2100MHz Amplifier wholesale

Model Number : JY825

Place of Origin : Guangdong, China

Brand Name : JIAYI

Packaging Details : Normal packing

Price : $488.00/sets 1-9 sets

Type : 4G signal booster

Network : 4g, GSM, 3G

Product name : Mobile Signal Booster

Frequency : 900/1800/2100MHz

Function : Signal Extender

Output Power : 30-36dBm

Gain : 80-90dB

Coverage : 3000-5000sqm

Application : Office

Weight : 20KG

Size : 46*38*20CM

Warranty : 2 Years

Contact Now

Product Description

High Gain 85dB 2G 3G 4G LTE Repeater Outdoor Mobile Signal Booster 900-1800-2100MHz Amplifier

Specification

item	value
Place of Origin	Guangdong China
Brand Name	JIAYI
Model Number	JY825
Gain	80DB
Frequency	GSM900/DCS1800/3G WCDMA
Power	30-36dBm
Package Size	460380200mm
Operating Temperature	-10℃-60℃
Color	Gray
Package Weight	20kg
Coverage area	3000-5000 Square Meters
Quality warranty	24month

Accessories and Installation

Packing list
Item	Quantity(pcs)
Repeater	1pcs
Logarithm outdoor antenna	1pcs
Ceiling antenna	1pcs
Cable 3 meters	1pcs
Cable 10 meters	1pcs
Power adapter	1pcs

^{Installation Method:}

1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well. 2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket. 3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket. 4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed. 5. After defining the indoor antenna installation position, fix the antenna. 6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
